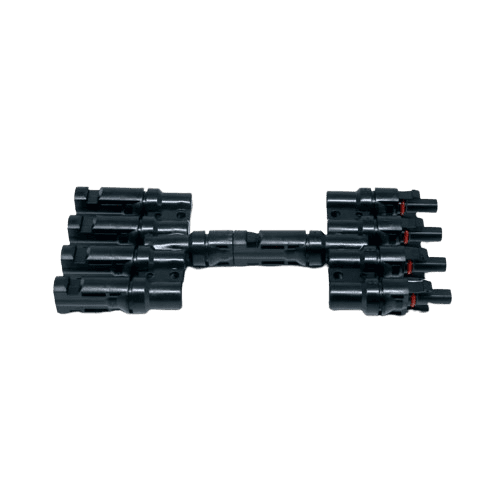

MC4 T Branch Connector 4 in 1 out

MC4 T Branch Connector 4 in 1 out

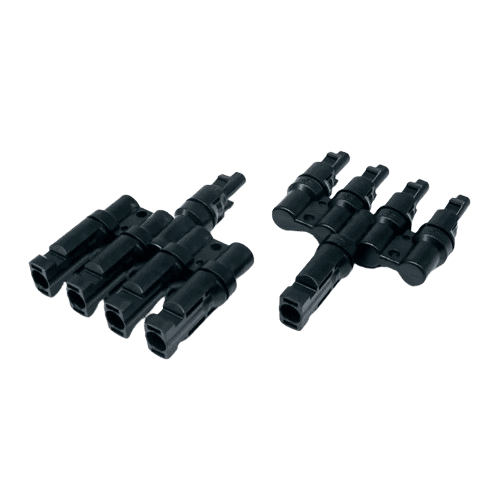

MC4 T Branch Connector 4 in 1 out - Imagen 2

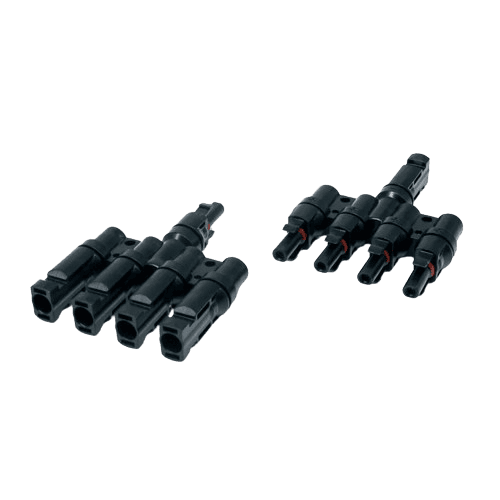

MC4 T Branch Connector 4 in 1 out - Imagen 3

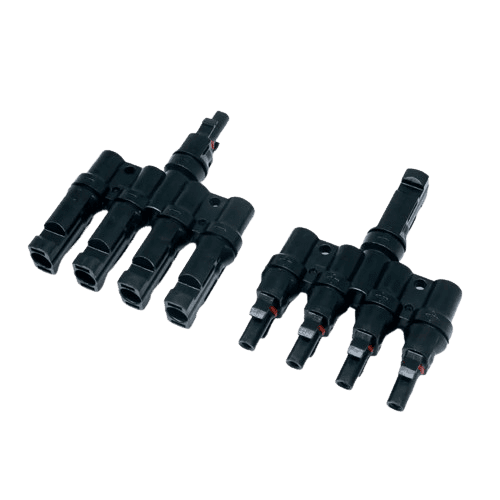

MC4 T Branch Connector 4 in 1 out - Imagen 4

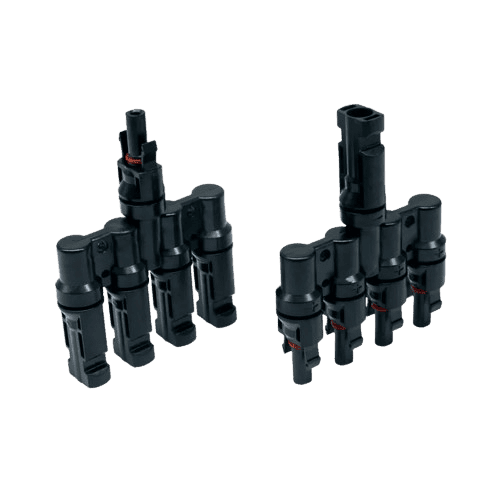

MC4 T Branch Connector 4 in 1 out - Imagen 5
MC4 T Branch Connector 4 in 1 out - Imagen 6
Categoría

Información adicional

Type

Adapter
Gender

Male&Female
Advantage

Electrical Propertise
Application

Solar power system
Ask For Quote

Product Details:

Type Male&Female
Product Standard DIN V VDE V 0126-3/12.06, UL 1703 Standard
Characteristic
Rated voltage 1000V/1500V
Rated Current 22A (2.5mm2)/30A (4/6mm2)
Contact resistance of plug connectors ≦5mΩ
Dia. Of pin or socket 4mm
Protection dgree(Mated/unmated) IP67/IP2X
Operating temperature -40℃~+85℃
Insulation material PC/PA /PPO/TPE
Contact material Silver plated copper
Locking system Snap in
Cable cross section on request 2.5/4.0/6.0mm2



Advantage:

•Simple, quick, safe, and effective filed assembly

•High mechanical endurance

•High current and voltage carrying:30A,1000DC

•Low transition resistance

•Innovative sealed, waterproof,dust resistance design: IP67

•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

•Approved by TUV CE
